Series: 3500

Manufacturer: Bently Nevada

Model Number: 3500/46M

Weight: 2.0 lb

Product Type: Hydro Monitor Four-channel Monitor

Dimensions: 9.50 in x 0.96 in x 9.52 in

Availability: In stock

Functional Description

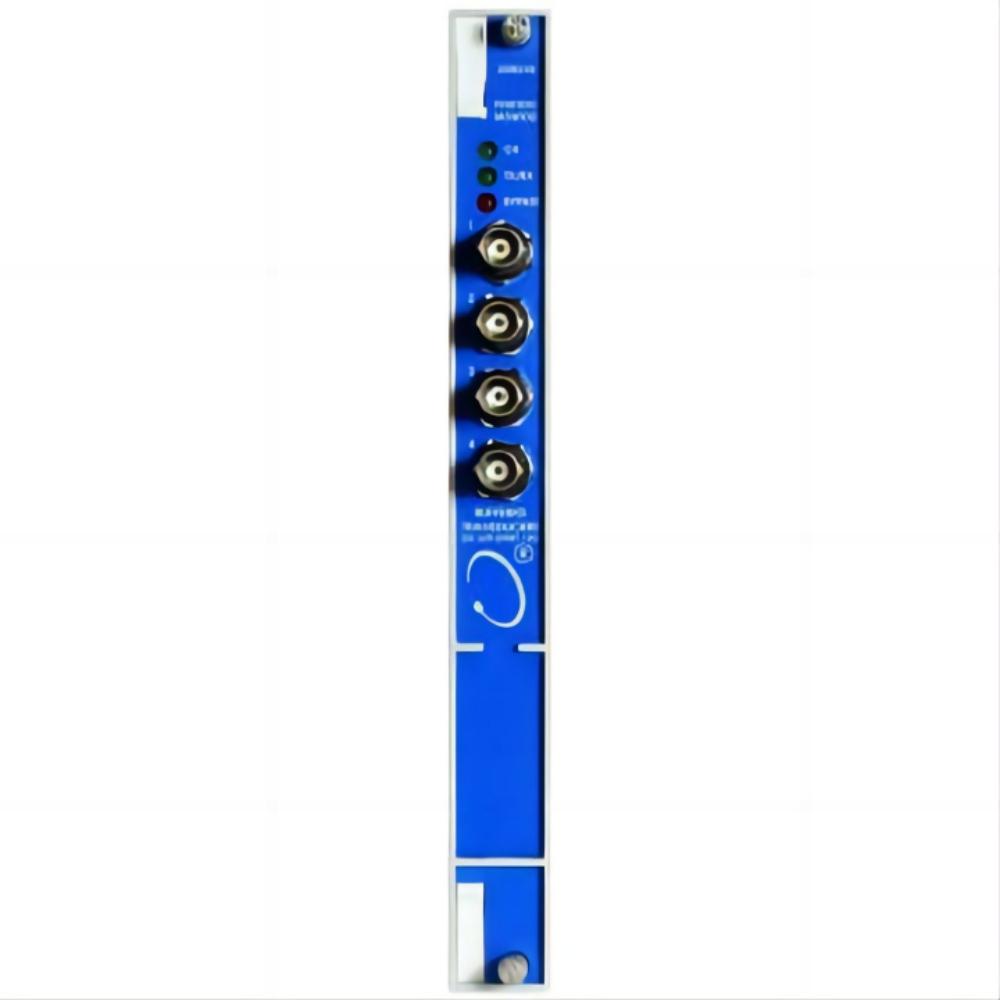

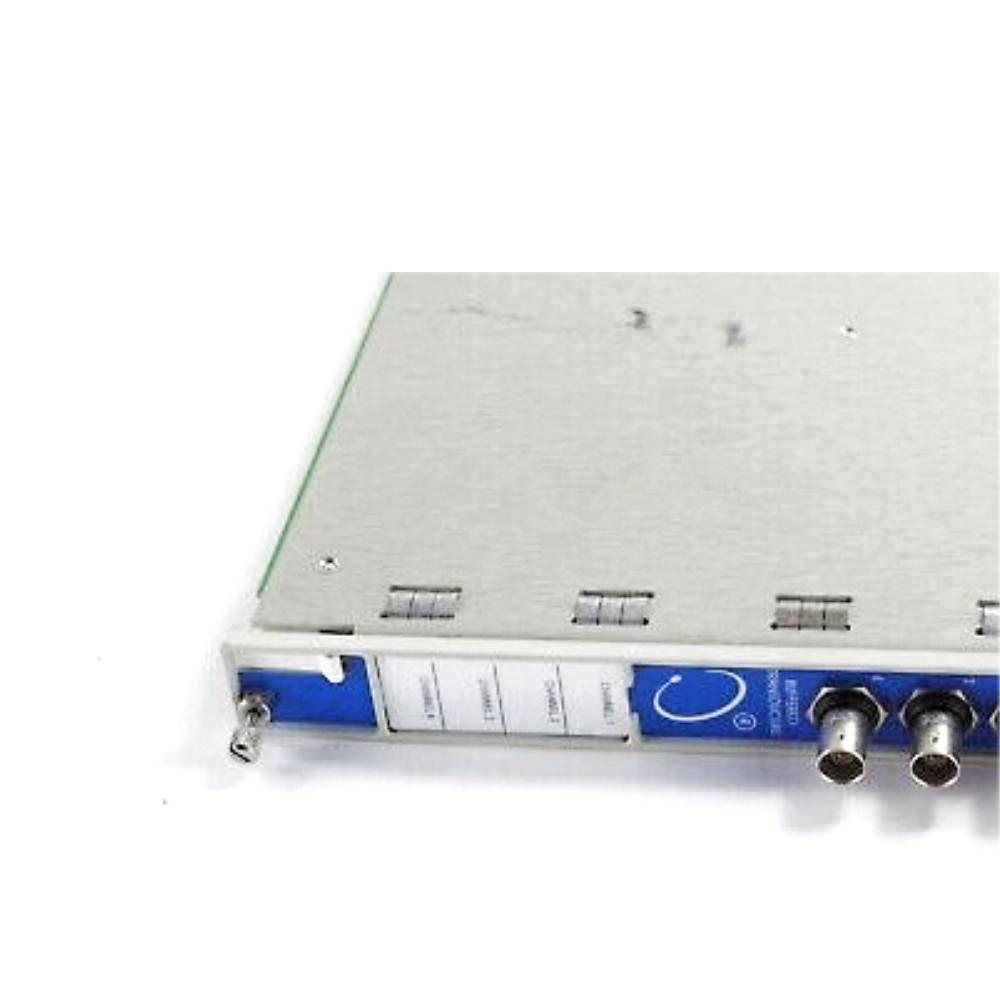

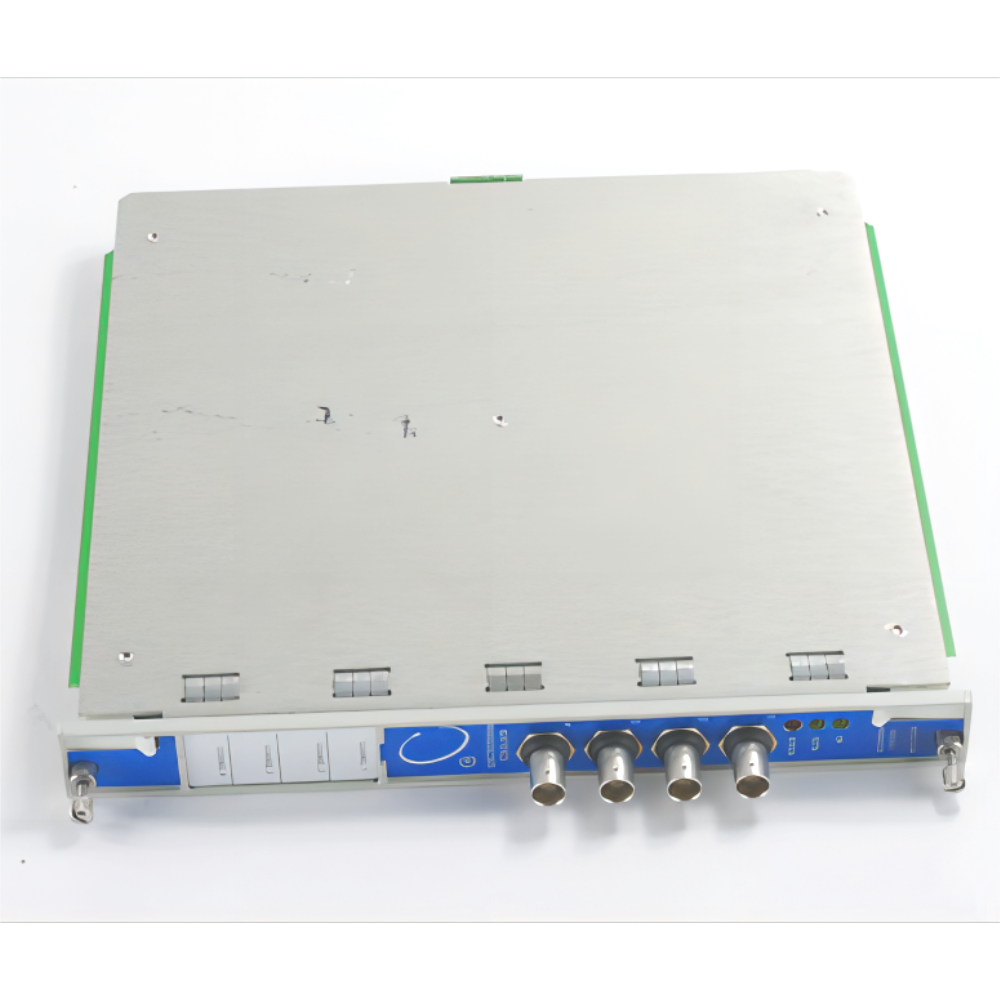

Bently Nevada 3500/46M Hydro Monitor is a four-channel instrument that accepts input from proximity, seismic, dynamic pressure and air gap sensors. The monitor conditions the signal to provide vibration, position and both static and dynamic pressure measurements. It then compares the conditioned signals with user-programmable alarms. Hydro Radial Vibration channels combine the shaft gap movement with the NX amplitude to provide a measurement to alarm on shear-pin failure.

Using the 3500 Rack Configuration Software, you can configure the 3500/46M Hydro Monitor to perform the following functions:

 1.  Hydro Radial Vibration

 2.  Hydro Air Gap

 3.  Hydro Velocity

 4.  Hydro Acceleration

 5.  Hydro Thrust

 6.  Multimode Hydro RV

 7.  Multimode Air Gap

 8.  Multimode Hydro Velocity

 9.  Multimode Thrust

10. Multimode Acceleration

11. Multimode Hydro Dynamic Pressure

12. Hydro Stator End Winding (SEW)
