Manufacturer: Bently Nevada

Part Number: 330780-51-00

Product Type: 3300 XL 11 mm Proximitor Sensor

Total Length and Mounting: 5.0 meter (16.4 feet) system length, DIN mount

Series: 3300

Availability: In stock

Functional Description

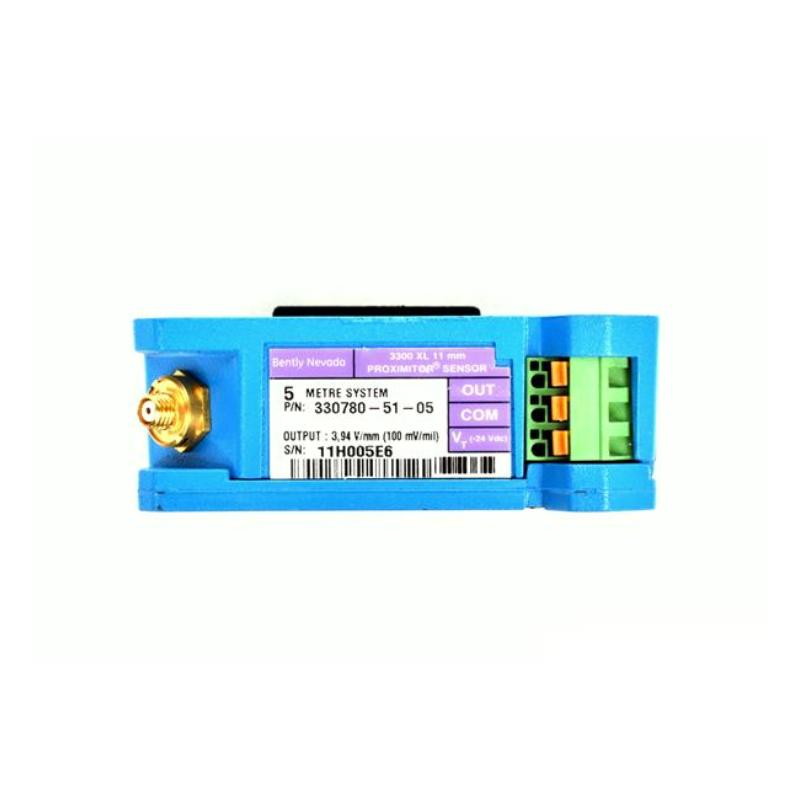

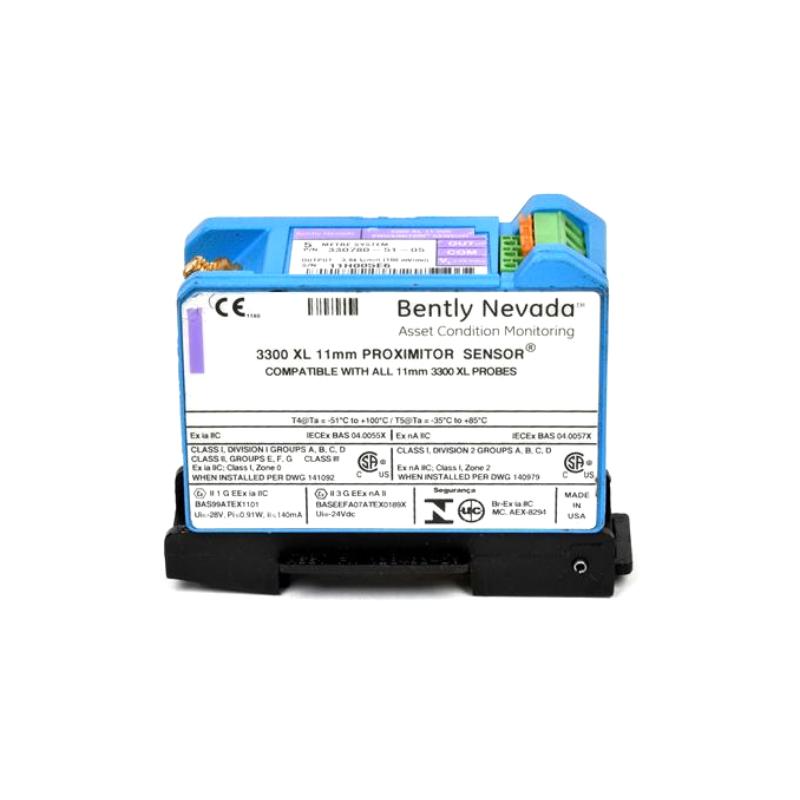

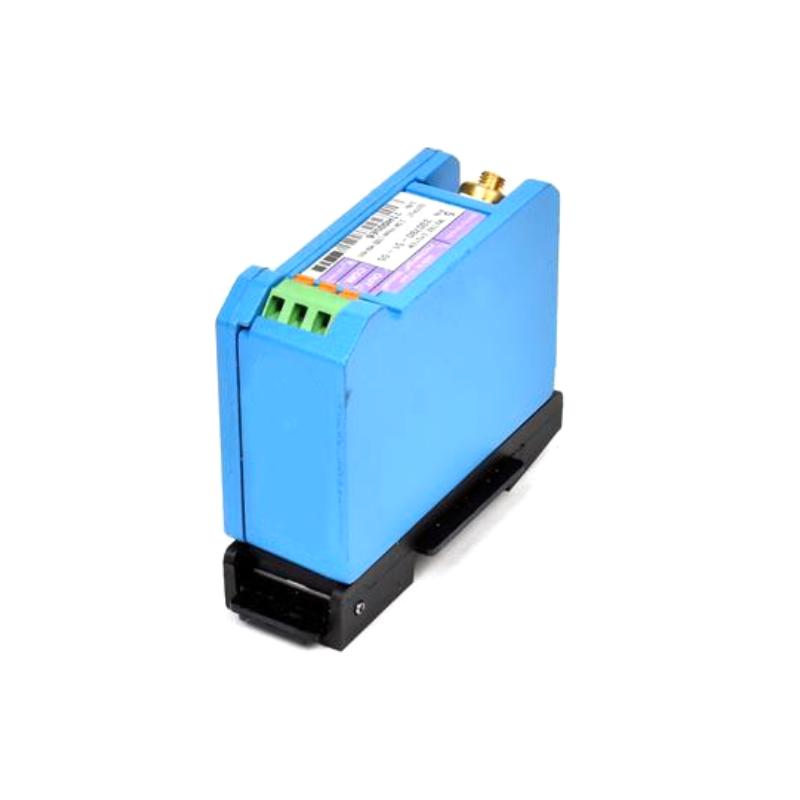

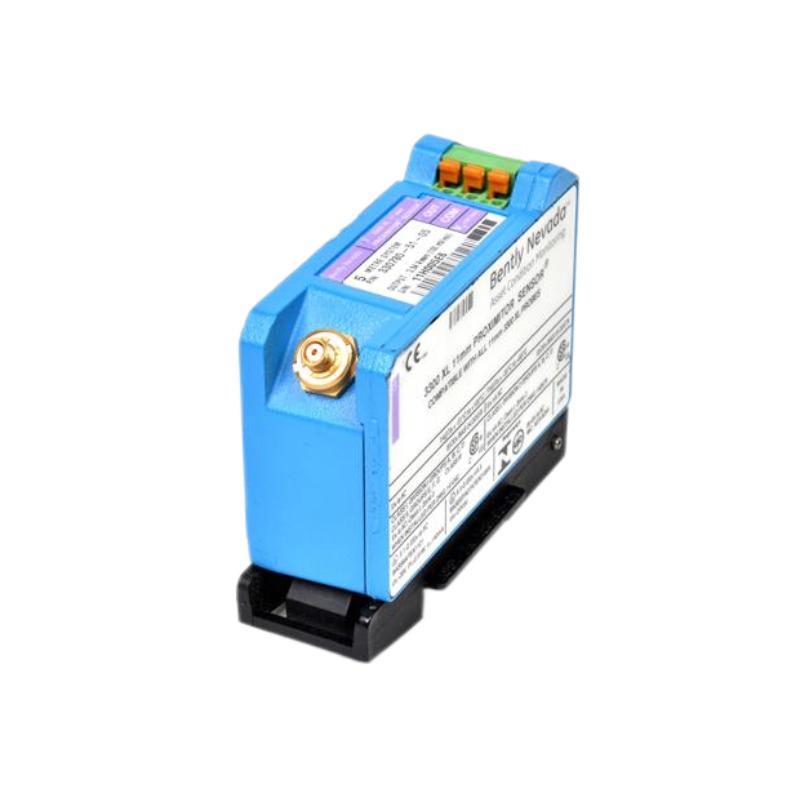

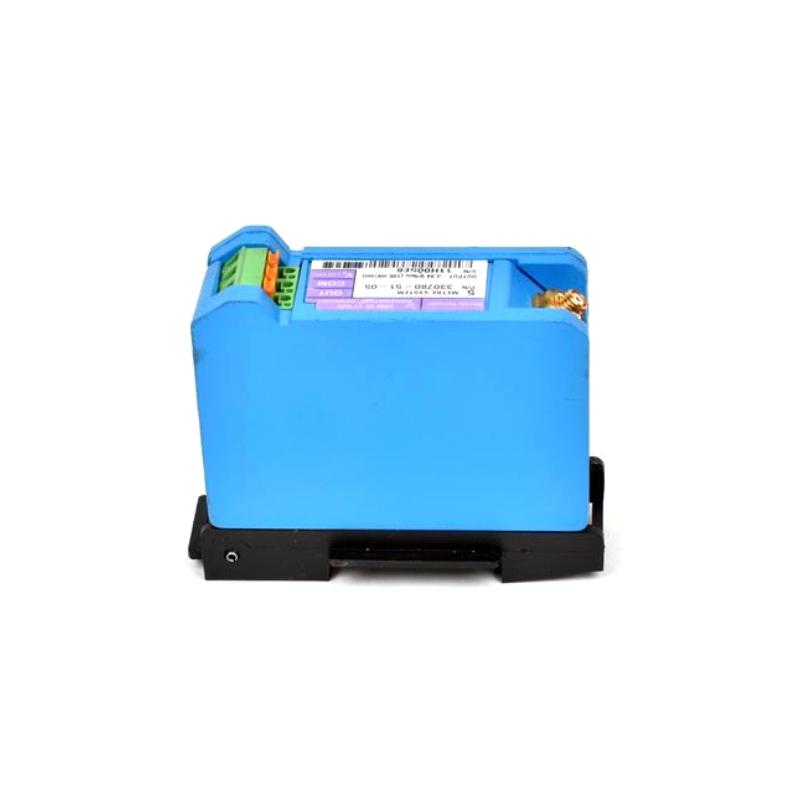

Bently nevada 330780-51-00 3300 XL 11 mm Proximitor Sensor is a part of the 3300 XL 11 mm Proximity Transducer System. The 3300 XL 11 mm Proximity Transducer is designed for measuring position or vibration within a frequency range of 0 to 8 kHz. Typical applications of this system include radial vibration and position, axial position and Keyphasor measurements. Although the terminals and connector on the Proximitor sensor have protection against electrostatic discharge, take reasonable precautions to avoid electrostatic discharge during handling.

3300 XL 11 mm Proximity Transducer System

3300 XL 11 mm Proximity Transducer System consists of:

1. a 3300 XL 11 mm probe.

2. a 3300 XL 11 mm extension cable.

3. a 3300 XL 11 mm Proximitor Sensor.

The 3300 XL 11 mm Proximity Transducer System has a 3.94 V/mm (100 mV/mil) output for non-contacting vibration and displacement measurements on fluid film bearing machines. The large 11 mm tip enables this transducer system to have a longer linear range compared to our standard 3300 XL 8 mm Transducer System. It is primarily used in the following applications where the longer linear range is necessary:

1. Axial (thrust) position measurements

2. Ramp differential expansion measurements on steam turbines

3. Rod position or rod drop measurements on reciprocating compressors

4. Tachometer and zero speed measurements

5. Phase reference (Keyphasor) signals

The 3300 XL 11 mm Proximitor Sensor is designed to replace the 7200-series 11 mm and 14 mm Transducer Systems. When upgrading from the 7200-series system to the 3300 XL 11 mm system, every component must be replaced with 3300 XL 11 mm components. In addition, the monitoring system must be updated. If using a 3500 Monitoring System, an updated version of the configuration software that lists the 3300 XL 11 mm Transducer System as a compatible option is required. Existing 3300 Monitoring Systems may need a modification.

Proximitor Sensor

The 3300 XL 11 mm Proximitor Sensor has the same advanced features found in the 3300 XL 8 mm Proximitor Sensor. Its thin design allows it to be mounted in either a high-density DIN-rail installation or a more traditional panel mount configuration. Improved RFI/EMI immunity allows the 3300 XL Proximitor Sensor to achieve European CE mark approvals without any special mounting considerations. This RFI immunity also prevents the transducer system from being adversely affected by nearby high frequency radio signals. SpringLoc terminal strips on the Proximitor Sensor require no special installation tools and facilitate faster, highly robust field wiring connections.
