Bently Nevada 149356-01 is in stock, please contact us and we will provide you with the lowest price!
Sales manager : Cody
E-mail: sales2@xmjzjsgs.com
Whatsapp：+8615305023276
Mobile：+8615305023276
WeChat: 15305023276
Add：Building B/C Jiuzhou, Huli Dist, Xiamen, China.
Service：Professional Sales Provide 24hours/7 day Online Services
Warranty: 12 months
Fast Delivery: Delivery Within 2 Days
Terms of payment: Paypal、T/T 、 Western Union
Courier partners: DHL, UPS, TNT, FedEx and EMS
Manufacturer: Bently Nevada
Model Number: 3500/94
Part Number: 149356-01
Product Type: Display Router Box
Display: 10" or 15" VGA touch screen
Series: 3500
Availability: In stock
Functional Description

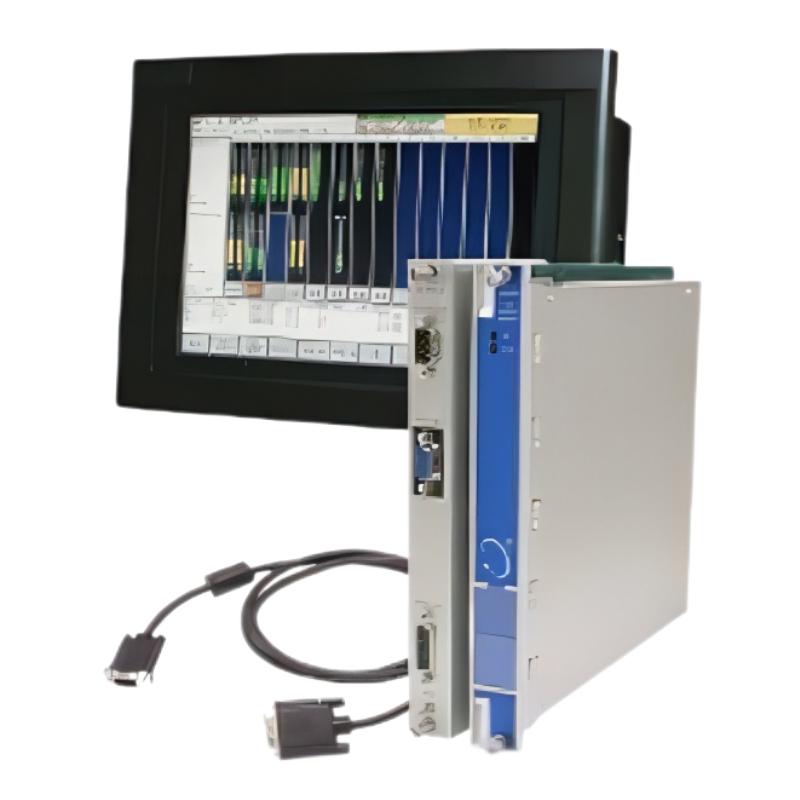

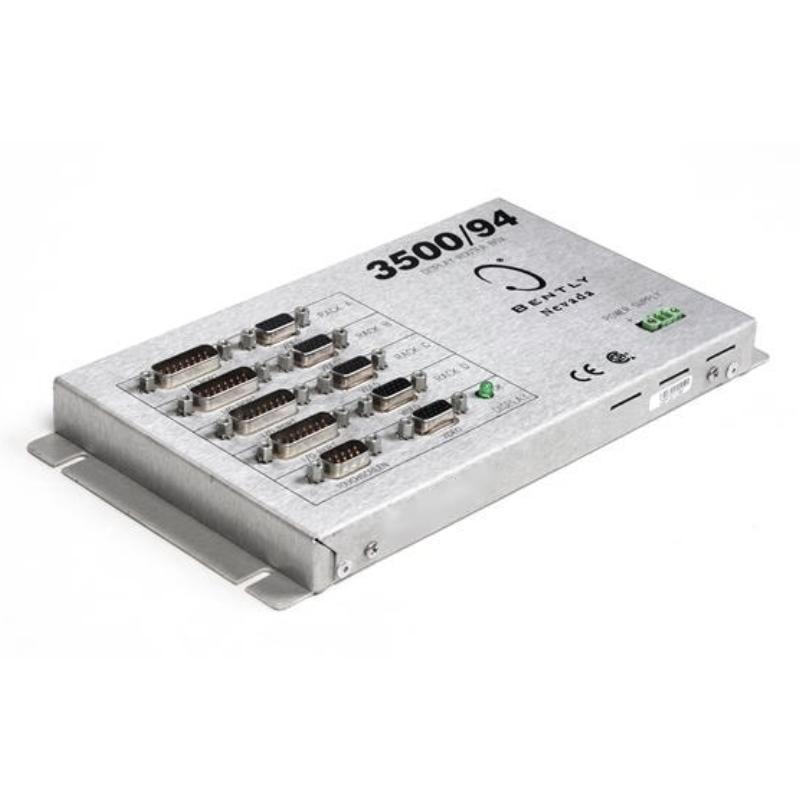

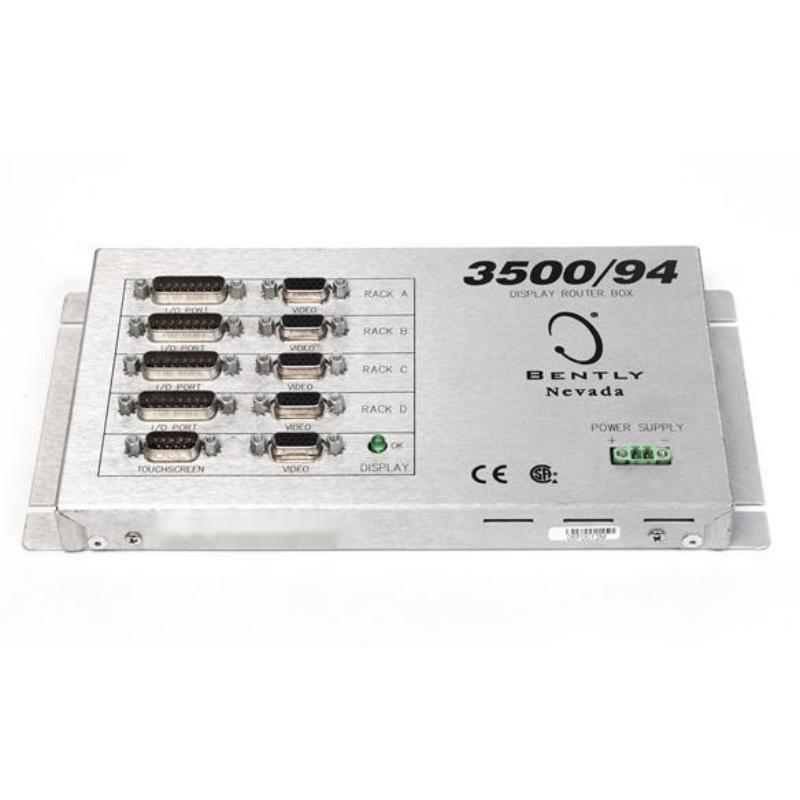

Bently Nevada 149356-01 Display Router Box is a part for the 3500/94 VGA Display Monitor.The 3500/94 VGA Display uses a standard color VGA monitor with “Touch Screen” technology to display 3500 data. This product has two components, the 3500/94 VGA module and its I/O card, and secondly, the VGA display monitor. The display monitor, with standard cabling, can be mounted up to 8 m (25 ft) from the rack.
The 3500/94 displays all 3500 Machinery Protection System information, including:
1. System Event List
2. Alarm Event List
3. All module and channel data
4. 3300 style rack view (API-670)
5. Current alarm data (quick view)
6. Nine custom display options.
All are accessed through a Main Menu using a Touch Screen.
Users configure the 3500/94 modules for language and for the type of VGA display through the 3500 Rack Configuration Software. All other types of data configurations are done locally at the display, giving the operator control over the displayed data. Users may configure nine custom screens locally. As an example, one custom screen may show all the 1X measurements, while another shows all the Gaps, or the custom screens may be organized into train groupings. Users can organize all system data into any specified sets assigned the data to a custom screen. An API-670 compatible screen is also selectable. This screen is similar to a 3300 view of the rack. Each slot shows the Direct or Gap value on the face of the module with OK and Bypass LEDs.
Multiple Rack Feature
Selecting the 3500/94 Display Router Box provides an additional viewing feature. This feature allows users to view a maximum of four racks with one display. Each rack must be individually viewed, but the rack address and alarm status of each rack is always visible in the upper right corner of the screen. The Display Router Box must be located within 6 m (20 ft) of each 3500 rack.
Display Monitors
Bently Nevada, Inc. offers five approved display monitor types, which are the only types that will properly interface to the 3500/94 VGA modules. Each display is intended to meet different application requirements. It is important that you make the right selection for your application. For outdoor installations, all display types require a hood to block direct sunlight. Each display requires a separate power supply. As an option item, the KVM Extender may be selected for remote sites up to 305 m (1000 ft). While the KVM Extender will meet most viewing requirements, the extender will degrade picture image quality and may be affected by noisy environments. Therefore, users should avoid using the KVM Extender unless the standard 8 m (25 ft) cable length is not adequate.
All display monitor types are “Touch Screen”. Because the “Touch Screen” controllers differ, users must configure each display monitor type using the 3500 Rack Configuration Software.
The 3500/94 offers a Display Router Box that allows up to four 3500 racks to drive a single display. The Display Router Box acts as a switch box that allows the operator to switch the display between racks. An important feature of the Display Router Box is its ability to show the alarm and OK status of each connected rack.
