Bently Nevada 136180-01 is in stock, please contact us and we will provide you with the lowest price!

Sales manager : Cody

E-mail: sales2@xmjzjsgs.com

Whatsapp：+8615305023276

Mobile：+8615305023276

WeChat: 15305023276

Add：Building B/C Jiuzhou, Huli Dist, Xiamen, China.

Service：Professional Sales Provide 24hours/7 day Online Services

Warranty: 12 months

Fast Delivery: Delivery Within 2 Days

Terms of payment: Paypal、T/T 、 Western Union

Courier partners: DHL, UPS, TNT, FedEx and EMS

Series: 3500

Manufacturer: Bently Nevada

Part Number: 136180-01

Weight: 0.4 kg

Product Type: Communication Gateway Module

Dimensions: 130 x 100 x 40 mm

Availability: In stock

Functional Description

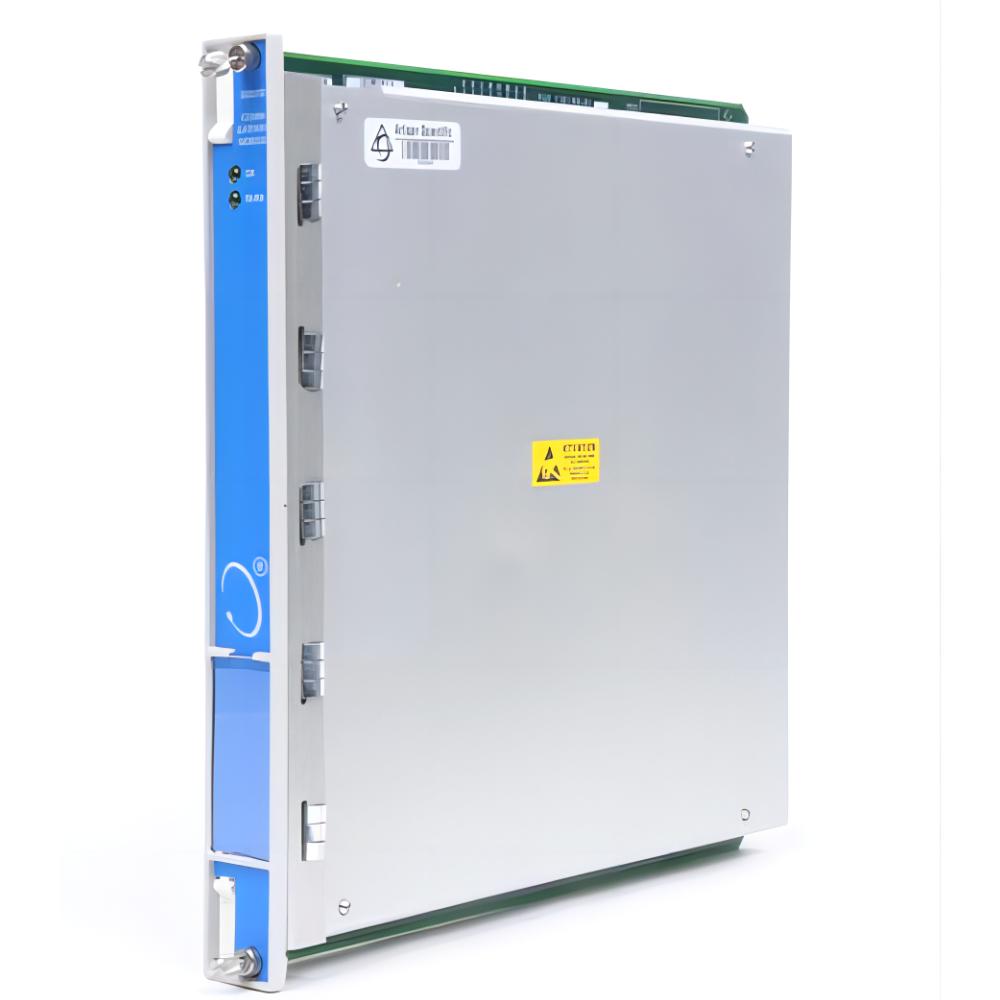

136180-01 is a Communication Gateway Module by Bently Nevada.

The 3500/92 Communication Gateway module provides extensive communication capabilities of all rack monitored values and statuses for integration with process control and other automation systems using both Ethernet TCP/IP and serial (RS232/RS422/RS485) communications capabilities.  It also permits Ethernet communications with 3500 Rack Configuration Software and Data Acquisition Software.

Supported protocols include:

1. Modicon Modbus protocol (via serial communications)

2. Modbus/TCP protocol (a variant of serial Modbus used for TCP/IP Ethernet communications)

3. Proprietary Bently Nevada protocol (for communication with 3500 Rack Configuration and Data Acquisition Software packages)

The Ethernet connection to the 3500/92 is an RJ45 connection for 10BASE-T star configuration Ethernet networks.

The 3500/92 supports the communication interfaces, communication protocols, and other features from the original 3500/90 with the exception of the primary value Modbus registers.  The 3500/92 now has a Configurable Modbus Register Utility, which can provide the same functionality originally addressed by the primary value Modbus registers.
