Series: 3300

Manufacturer: Bently Nevada

Model Number: 3300/20

Part Number: 135322-01

Product Type: Dual Thrust Position Monitor

Dimensions: 9.50 x 4.50 x 1.00

Weight: 1 kg

Availability: In stock

Functional Description

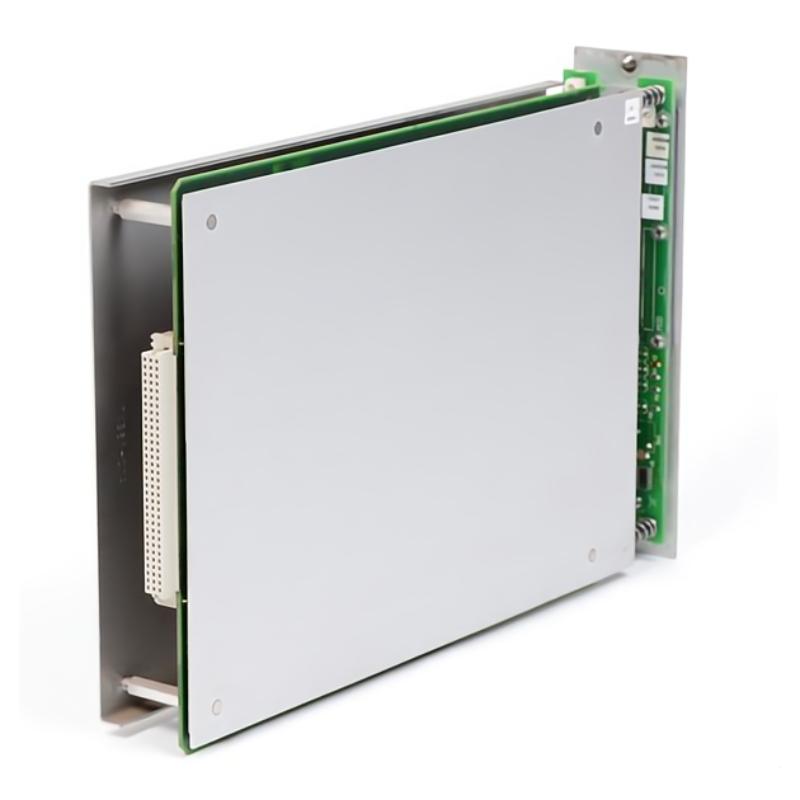

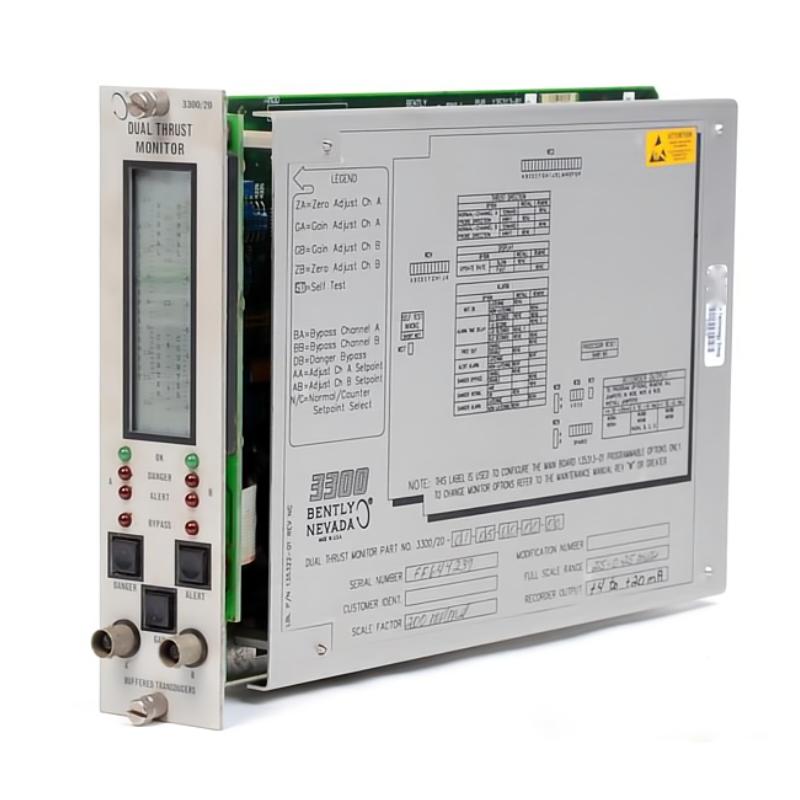

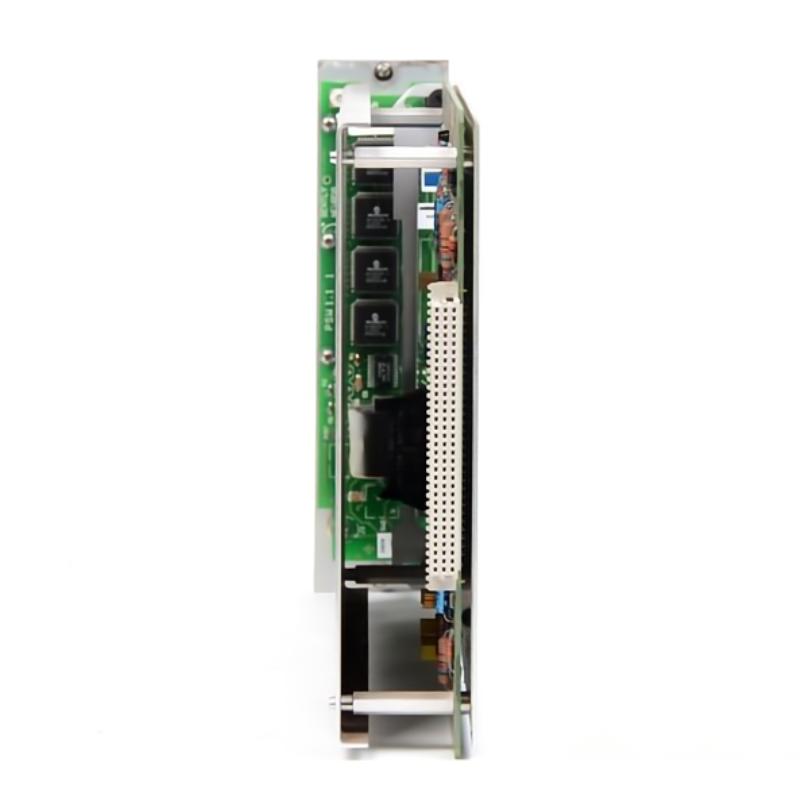

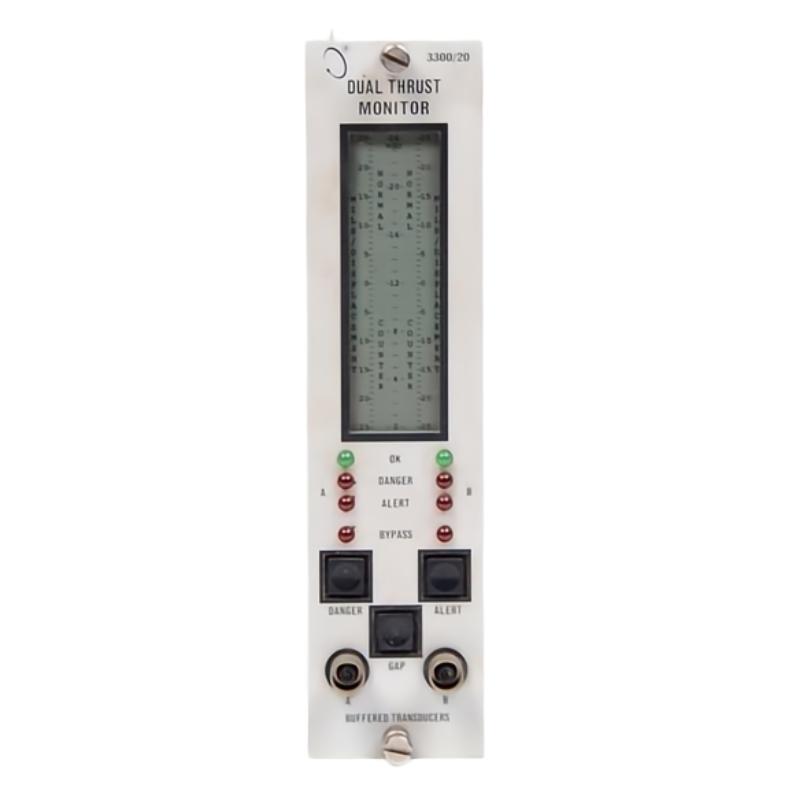

3300/20 135322-01 is a Dual Thrust Position Monitor manufactured and designed by Bently Nevada as part of the 3300 Series used for machinery vibration monitoring systems.

The 3300/20 Dual Thrust Position Monitor provides early warning of thrust bearing failure. It continuously measures and monitors two independent channels of shaft axial position relative to the axial clearances within the machine. Ideally, the axial probes are installed to observe the thrust collar directly, so the measurement represents the position of the collar relative to the thrust bearing clearance. Because thrust measurements are made by observing the gap voltage of the proximity probe used as an input, a transducer failure (gap out of range) can be interpreted by the monitor as thrust position movement and result in a false thrust alarm. For this reason, Bently Nevada LLC. does not recommend the use of a single probe for thrust position applications. Instead, these applications should use two proximity probes observing the same collar or shaft and configure the monitor as AND voting whereby both transducers must simultaneously reach or exceed their alarm setpoints for the monitors alarm relays to actuate.

FEATURES:

1. Dual Thrust Monitoring: Monitors the position of two separate thrust components simultaneously.

2. Real-time Position Tracking: Provides real-time feedback on the current position of each thrust element.
3. Precision Measurement: Offers high-precision measurements to ensure accurate monitoring of thrust positions.

4. Feedback Mechanism: Incorporates a feedback mechanism to relay position information to a control system or operator.

5. Customizable Thresholds: Allows users to set customizable thresholds for acceptable position ranges.

6. Alert System: Features an alert system that triggers when thrust components exceed predefined limits or deviate from the desired positions.

7. Data Logging: Records and stores historical data on thrust positions for analysis and troubleshooting.

8. Remote Monitoring: Enables remote monitoring of thrust positions, facilitating control and oversight from a distance.

9. Compatibility: Designed to be compatible with various thrust mechanisms or systems.
10. User Interface: Intuitive user interface for easy configuration, monitoring, and adjustment of settings.

11. Diagnostic Tools: Provides diagnostic tools for identifying issues or irregularities in the thrust components.

12. Integration Capabilities: Integrates seamlessly with existing control systems or other monitoring devices.
