Manufacturer: Bently Nevada

Model Number: 3500/50M

Part Number: 133434-01

Product Type: I/O Module with External Terminations

Dimensions: 9.50 in x 0.96 in x 3.90 in

Weight: 0.20 kg (0.44 lb)

Series: 3500

Availability: In stock

Functional Description

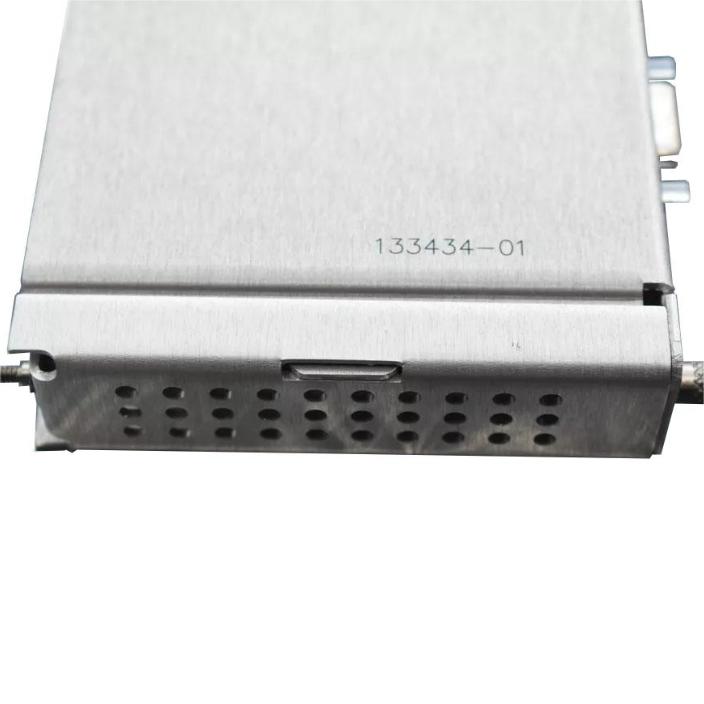

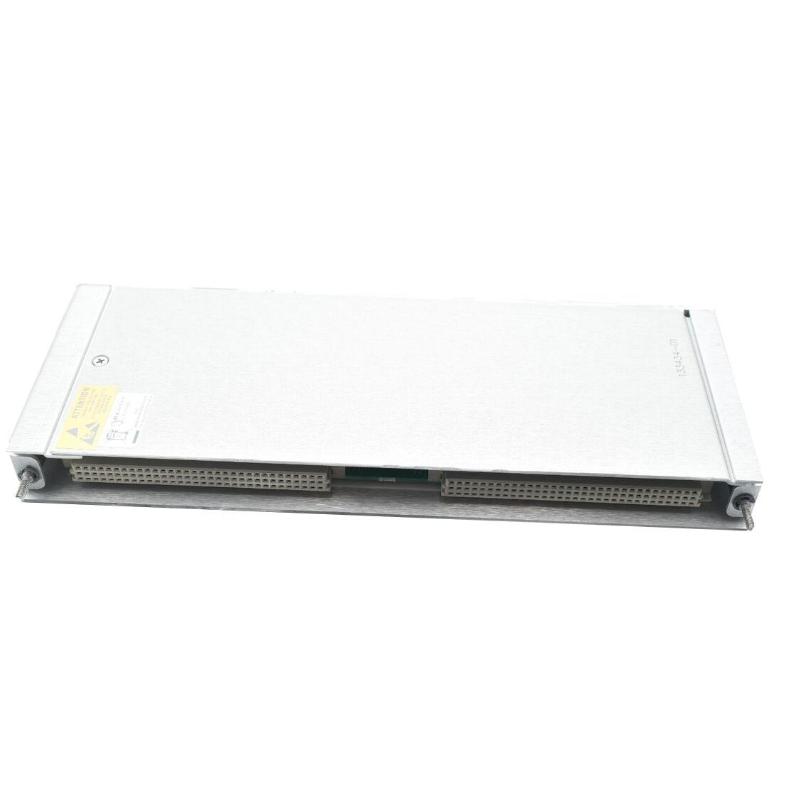

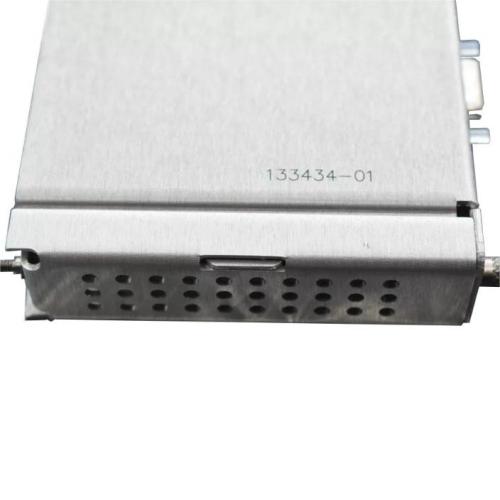

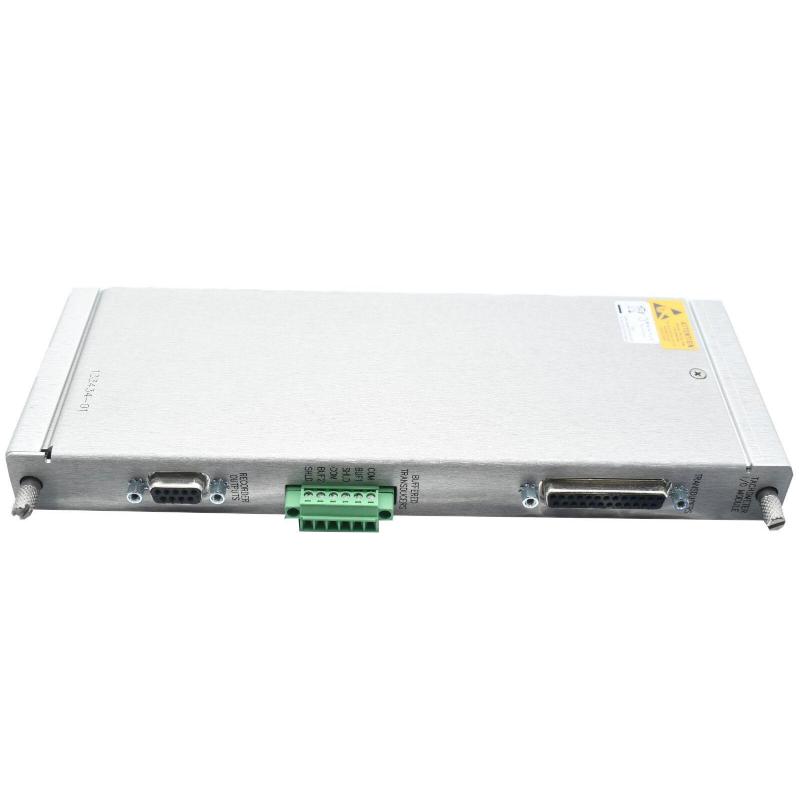

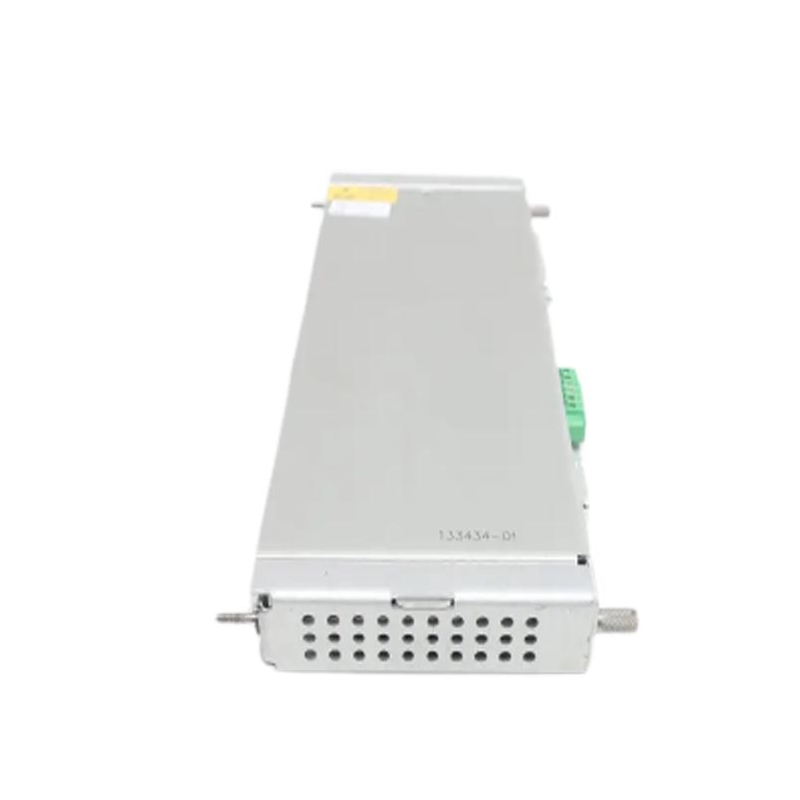

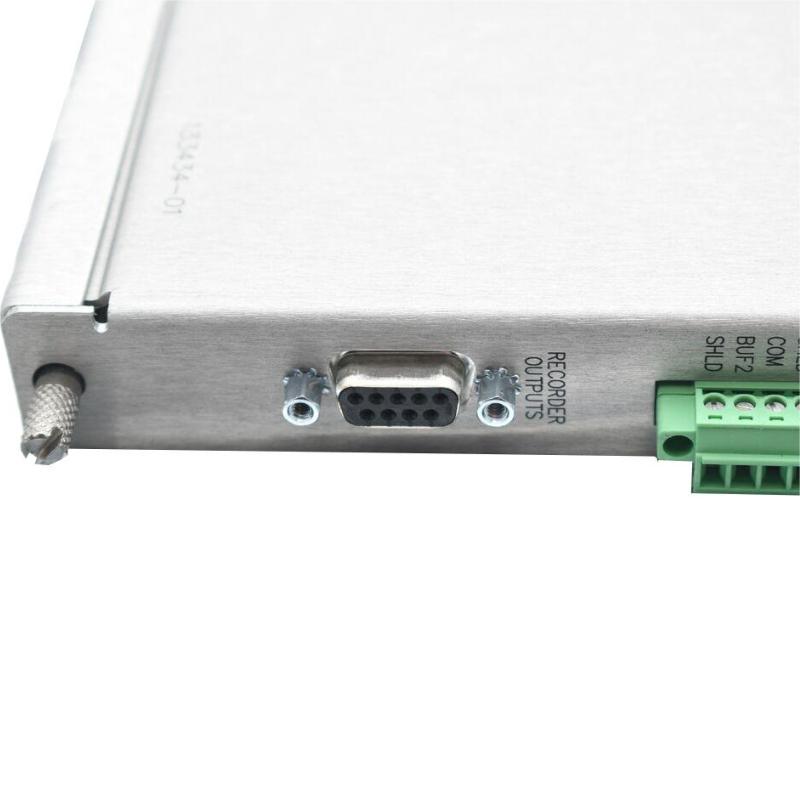

Bently Nevada 133434-01 is an I/O Module with External Terminations,It is a part of the Bently Nevada 3500/50M Tachometer Module.

The 3500/50M Tachometer Module is a 2-channel module that accepts input from proximity probes or magnetic pickups to determine shaft rotative speed, rotor acceleration, or rotor direction. The module compares these measurements against user-programmable alarm setpoints and generates alarms when the setpoints are violated.

The Tachometer Module is programmed using the 3500 Rack Configuration software. The following configuration options are available:

1. Speed Monitoring, Setpoint Alarming and Speed Band Alarming

2. Speed Monitoring, Setpoint Alarming and Zero Speed Notification

3. Speed Monitoring, Setpoint Alarming and Rotor Acceleration Alarming

4. Speed Monitoring, Setpoint Alarming and Reverse Rotation Notification

The 3500/50M Tachometer Module can be configured to supply conditioned Keyphasor signals to the backplane of the 3500 rack for use by other monitors. Therefore, you don't need a separate Keyphasor module in the rack.

The 3500/50M Tachometer Module has a peak hold feature that stores the highest speed, the highest reverse speed, or the number of reverse rotations that the machine has reached. You can reset the peak values.
